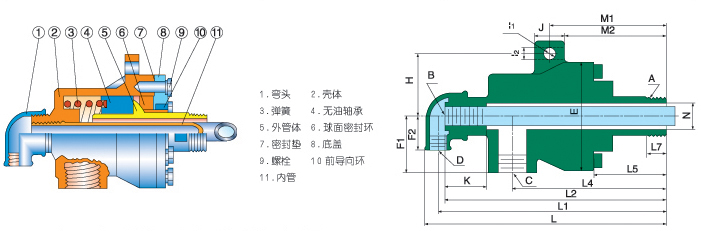

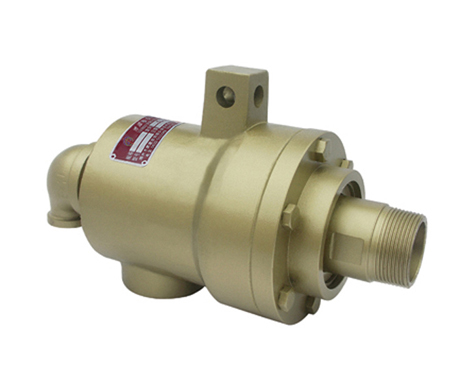

高溫導熱油專用旋轉接頭 雙向流通內管固定式——螺紋連接
|
規格
|
型號
|
A
|
B
|
C
|
E
|
F1
|
F2
|
H
|
I1
|
I2
|
J
|
K
|
L
|
L1
|
L2
|
L4
|
L5
|
L7
|
M1
|
M2
|
N
|
|
20
|
QS-G20-8
|
R3/ 4
|
G1/4
|
Rc3/4
|
96
|
48
|
30
|
58
|
12
|
-
|
30
|
35
|
235
|
220
|
202
|
152
|
39
|
20
|
80
|
66
|
18
|
|
25
|
QS-G25- 10
|
R1
|
G3/4
|
Rc3/4
|
76
|
35
|
40
|
54
|
-
|
11
|
25
|
35
|
254
|
239
|
224
|
158
|
48
|
22
|
105
|
93
|
25
|
|
32
|
QS-G32-15
|
R1-1/4
|
G1/2
|
Rc1
|
120
|
63
|
38
|
70
|
-
|
14
|
34
|
47
|
276
|
264
|
249
|
190
|
59
|
25
|
112
|
95
|
30
|
|
40
|
QS-G40-20
|
R1-1/2
|
G3/4
|
Rc1-1/4
|
130
|
70
|
43
|
78
|
-
|
16
|
32
|
45
|
312
|
295
|
282
|
196
|
69
|
30
|
133
|
117
|
38
|
|
50
|
QS-G50-25
|
R2
|
G3
|
Rc1-1/2
|
160
|
85
|
51
|
95
|
18
|
-
|
40
|
36
|
354
|
312
|
312
|
245
|
64
|
32
|
124
|
104
|
48
|
